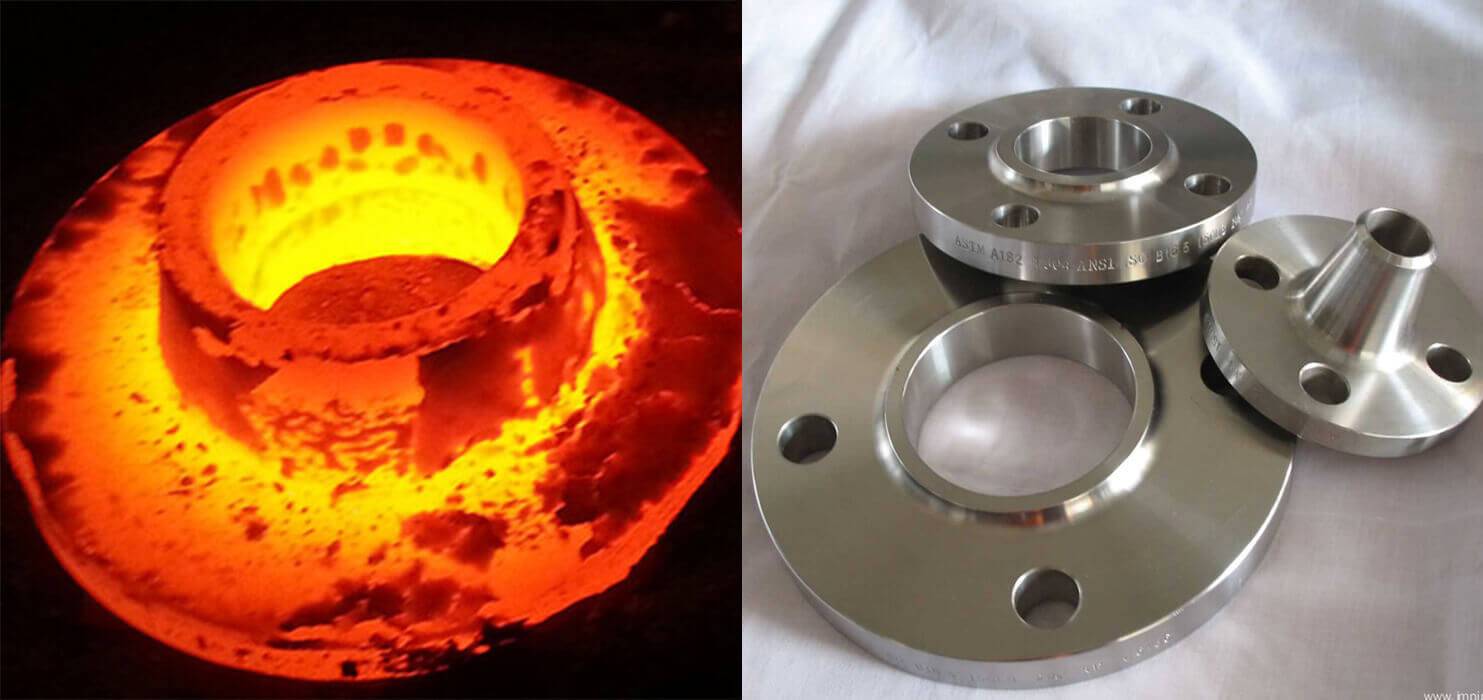

Stainless Steel 316L Flanges are made from corrosion-resistant austenitic stainless steel. Especially resistant to chloride ion stress corrosion cracking, they are ideal for high-temperature and high-pressure applications. Stainless Steel 316L Flanges can handle temperatures of up to 870°C and have a minimum tensile strength of 515MPa. SS 316L Flanges and SS 316 Flanges can be made from forged or rolled components. The A182 specification requires these flanges to operate at high temperatures, up to 870°C. The range of sizes available for 316L flanges varies from 1/2 inch to 48 inches. Stainless Steel 316L Flanges are available in ASTM A182 Flanges, ANSI B16.5 SS Socket Weld Flanges, and ASME SA182 SS 316L RTJ Flanges. They can also be forged or lap-joint flanges.
Neo Impex Stainless Pvt. Ltd. (NISPL) has the competency and skill required to engineer materials to specification, nominal or customizable, with tight tolerances and supreme finish. We have dedicated ourselves to creating a steady portfolio of quality products through a relentless improvement in our production patterns for overall customer satisfaction. We are a manufacturer, supplier, and exporter of Stainless Steel 316L Flanges, a low-carbon version of Stainless Steel 316 Flanges. These flanges are responsible for reducing the disastrous effects of carbide precipitation. Our ASME SA182 SS 316L Socket Weld Flanges have a higher creep resistance, are more capable of operating in corrosive atmospheres, and have excellent formability characteristics.
Our WNR 1.4404 SS Threaded Flanges are as tough as nails, even at sub-zero temperatures, imparting the ability to operate in the petroleum industry. We maintain a surplus stock of SS UNS S31603 Slip On Flanges, which possess a high creep rupture strength, at our extensive inventory, making us deliver bulk orders for offshore industries with great ease. Also, We offer a wide range of Stainless Steel ASTM A182 316L Flanges such as SS 316L Slip On Flanges, SS 316L Weld Neck Flanges, SS 316L Socket Weld Flanges, SS 316L Blind Flanges, SS 316L Orifice Flanges, SS 316L Spectacle Blind Flanges, SS 316L Screwed / Threaded Flanges, SS 316L Reducing Flanges, SS 316L Ring Type Joint Flanges (RTJ) etc.
What is ASTM A182 F316L Stainless Steel Flanges?
ASTM A182 F316L Stainless Steel Flanges are a type of forged flange made of a low-carbon version of 316 stainless steel containing molybdenum for increased corrosion resistance. These flanges are designed for high-temperature & high-pressure applications and are available in various sizes and pressure ratings to suit different piping requirements.
What are the Applcations of ASTM A182 F316L Stainless Steel Flanges?
ASTM A182 F316L Stainless Steel Flanges are commonly used in oil and gas, chemical, and petrochemical industries for connecting pipes, valves, and other equipment. Common Applications include pipelines, heat exchangers, boilers, pressure vessels, and refineries. They are also used in the pharmaceutical and food processing industries due to their excellent corrosion resistance and hygienic properties.
What are the Benefits of ASTM A182 F316L Stainless Steel Flanges
The benefits of ASTM A182 F316L Stainless Steel Flanges include their high strength, excellent corrosion resistance & good weldability. They are also highly resistant to pitting and crevice corrosion, making them ideal for use in harsh environments with corrosive substances. They offer good machinability, allowing for easy fabrication & installation.
Specifications : ASTM A182 / A240 & ASME SA182 / SA240
Dimensions : ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size : 1/2" (15 NB) to 48" (1200NB)
Class / Pressure : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Forged and Plate Flanges
| Products | Size | |
| ASTM A182 SS 316L Slip-On Flanges | ASTM A182 SS 316L Threaded Flanges | Sizes 1/8″ – 36″ Raised Face or Flat Face |
| ASTM A182 SS 316L Weld Neck Flanges | ASTM A182 SS 316L Socket Weld Flanges | |
| ASTM A182 SS 316L Blind Flanges | ASTM A182 SS 316L Reducing Flanges | |
| ASTM A182 SS 316L Lap Joint Flanges | ASTM A182 SS 316L Plate Flanges | |
| ASTM A182 SS 316L Orifice Flanges | ASTM A182 SS 316L Forged Flanges | |
| ASTM A182 SS 316L Ring Type Joint Flanges | ASTM A182 SS 316L Square Flanges | |
| ASTM A182 SS 316L Flanges | F316L Stainless Steel Flanges | |
SS 316L Flange Standards / Types And Pressure Class :
| ASME/ANSI B 16.5 | Welding Neck Flange, Slip on Flange, Blind Flange, High Hub Blind Flange, Socket Weld Flange, Lap Joint Flange, Threaded Flange, Ring Type Joint Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| ASME/ANSI B 16.47 | Welding Neck Flange, Blind Flange [Series A & B] |
| PRESSURE CLASS | 75, 150, 300, 400, 600, 900 |
| ASME/ANSI B 16.36 | Welding Neck Flange, Slip on Flange, Threaded Flange |
| PRESSURE CLASS | 300, 400, 600, 900, 1500, 2500 |
| BS 4504 SEC 3.1 | Welding Neck Flange, Hubbed Slip on Flange, Hubbed Threaded Flange, Lapped Pipe End Flange, Plate Flange, Loose Plate Flange, Loose Plate With Weld Neck Flange, Blank Flange |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | Welding Neck Flange, Hubbed Slip-On Hubbed Threaded, Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange |
| PRESSURE CLASS | PN 2.5 TO PN 400 |
| BS 1560 BOSS | Welding Neck Flange, Socket Welding Flange, Slip-On Flange, Blind Flange, Screwed Boss Flange, Lapped Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| BS10 | Welding Neck Flange, Plate Slip-On Flange, Screwed Boss Flange, Slip-On Boss Flange, Blind Flange |
| TABLE | D, E, F, H |
| DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS | PN 6 TO PN 100 |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 - 18.00 | 2.00 - 3.00 | 10.00 - 14.00 | 68.89 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| Density | 8.0 g/cm3 |
|---|---|
| Melting Point | 1400 °C (2550 °F) |
| Tensile Strength | Psi – 75000 , MPa – 515 |
| Yield Strength (0.2%Offset) | Psi – 30000 , MPa – 205 |
| Elongation | 35 % |
| NPS | Flange OD | Flange Thickness | Raised Face Dia. | Dia. of Hub at Base | Length Thru Hub | Dia. or Bore | Dia. of Hub at Bevel | Fillet Radius | Socket Depth | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Weld Neck | Slip-On Threaded Socket | Lap Joint | Slip-on Socket | Lap Joint | ||||||||
| O | Q | R | X | Y | Y | Y | W | B | H | r | Z | |
| 1/2 | 3-1/2 | 7/16 | 1-3/8 | 1-3/16 | 1-7/8 | 5/8 | 5/8 | .88 | .90 | .84 | 1/8 | 3/8 |
| 3/4 | 3-7/8 | 1/2 | 1-11/16 | 1-1/2 | 2-1/16 | 5/8 | 5/8 | 1.09 | 1.11 | 1.05 | 1/8 | 7/16 |
| 1 | 4-1/4 | 9/16 | 2 | 1-15/16 | 2-3/16 | 11/16 | 11/16 | 1.36 | 1.38 | 1.32 | 1/8 | 1/2 |
| 1-1/4 | 4-5/8 | 5/8 | 2-1/2 | 2-5/16 | 2-1/4 | 13/16 | 13/16 | 1.70 | 1.72 | 1.66 | 3/16 | 9/16 |
| 1-1/2 | 5 | 11/16 | 2-7/8 | 2-9/16 | 2-7/16 | 7/8 | 7/8 | 1.95 | 1.97 | 1.90 | 1/4 | 5/8 |
| 2 | 6 | 3/4 | 3-5/8 | 3-1/16 | 2-1/2 | 1 | 1 | 2.44 | 2.46 | 2.38 | 5/16 | 11/16 |
| 2-1/2 | 7 | 7/8 | 4-1/8 | 3-9/16 | 2-3/4 | 1-1/8 | 1-1/8 | 2.94 | 2.97 | 2.88 | 5/16 | 3/4 |
| 3 | 7-1/2 | 15/16 | 5 | 4-1/4 | 2-3/4 | 1-3/16 | 1-3/16 | 3.57 | 3.60 | 3.50 | 3/8 | 13/16 |
| 3-1/2 | 8-1/2 | 15/16 | 5-1/2 | 4-13/16 | 2-13/16 | 1-1/4 | 1-1/4 | 4.07 | 4.10 | 4.00 | 3/8 | 7/8 |
| 4 | 9 | 15/16 | 6-3/16 | 5-5/16 | 3 | 1-5/16 | 1-5/16 | 4.57 | 4.60 | 4.50 | 7/16 | 15/16 |
| 5 | 10 | 15/16 | 7.5/16 | 6-7/16 | 3-1/2 | 1-7/16 | 1-7/16 | 5.66 | 5.69 | 5.56 | 7/16 | 15/16 |
| 6 | 11 | 1 | 8-1/2 | 7-9/16 | 3-1/2 | 1-9/16 | 1-9/16 | 6.72 | 6.75 | 6.63 | 1/2 | 1-1/16 |
| 8 | 13-1/2 | 1-1/8 | 10-5/8 | 9-11/16 | 4 | 1-3/4 | 1-3/4 | 8.72 | 8.75 | 8.63 | 1/2 | 1-1/4 |
| 10 | 16 | 1-3/16 | 12-3/4 | 12 | 4 | 1-15/16 | 1-15/16 | 10.88 | 10.92 | 10.75 | 1/2 | 1-5/16 |
| 12 | 19 | 1-1/4 | 15 | 14-3/8 | 4-1/2 | 2-3/16 | 2-3/16 | 12.88 | 12.92 | 12.75 | 1/2 | 1-9/16 |
| 14 | 21 | 1-3/8 | 16-1/4 | 15-3/4 | 5 | 2-1/4 | 3-1/8 | 14.14 | 14.18 | 14.00 | 1/2 | 1-5/8 |
| 16 | 23-1/2 | 1-7/16 | 18-1/2 | 18 | 5 | 2-1/2 | 3-7/16 | 16.16 | 16.19 | 16.00 | 1/2 | 1-3/4 |
| 18 | 25 | 1-9/16 | 21 | 19-7/8 | 5-1/2 | 2-11/16 | 3-13/16 | 18.18 | 18.20 | 18.00 | 1/2 | 1-15/16 |
| 20 | 27-1/2 | 1-11/16 | 23 | 22 | 5-11/16 | 2-7/8 | 4-1/16 | 20.20 | 20.25 | 20.00 | 1/2 | 2-1/8 |
| 24 | 32 | 1-7/8 | 27-1/4 | 26-1/8 | 6 | 3-1/4 | 4-3/8 | 24.25 | 24.25 | 24.00 | 1/2 | 2-1/2 |
| ASTM A182 f316l stainless steel flange FOB Price: US $1.25 - US $19.58/ Piece |
Class 2500 stainless steel ASTM A182 f316l large caliber flange FOB Price: US $3.00 - US $300.00/ Piece |
| ASTM A182 F316L 3In 150LB WN Flange RF FOB Price: US $5.00 - US $100.00/ Piece |
316L Stainless steel flange IN B16.5 ASTM A182 F316L FOB Price: US $3.60 - US $5.00/ Pieces |
| ASTM A182 F316L WNRF SORF BL RF 316L Stainless Steel Flange FOB Price: US $0.80 - US $1.50/ Piece |
Stainless ASTM A182 F316L weldolet sockolet threadolet MSS SP97 FOB Price: US $85.00 - US $100.00/ Piece |
| ASTM A182 F316L WNRF SORF BL RF 316L Stainless Steel Flange FOB Price: US $15.00 - US $260.00/ Piece |
316L Forged TH Flange 300LB ASTM A182 F316L Threaded Flanges FOB Price: US $1.00 - US $100.00/ Piece |
| 316L Stainless steel pipe puddle flange grade ASTM A182 f316l FOB Price: US $1.00 - US $120.00/ Piece |
DN10-DN1200 ASTM A182 F316l, SS 316L Socket Welding Orifice Flange FOB Price: US $1.00/ Piece |
| ASTM A182 f316l class 150 sw flange FOB Price: US $3.00/ Piece |
ASME B16.48 ASTM A182 F316L SPECTACLE BLIND 150# RF SMOOTH FINISH FOB Price: US $0.50 - US $50.00/ Piece |
| ASTM A182 F316L WNRF SORF BL RF Face FOB Price: US $1.00 - US $100.00/ Piece |
ASA / ANSI / ASME B16.5 ASTM A182 F316L forged slip on flange FOB Price: US $8.00 - US $12.00/ Units |
| Stainless Steel 316L Flanges | Stainless Steel 316L EN 1092-1 Flanges |
| Stainless Steel 316L BS 4504 Flanges | Stainless Steel 316L Forged Flanges |
| Stainless Steel UNS S31603 Flanges | Stainless Steel 316L Slip on Flanges |
| SS 316L Flat Flange Suppliers | ANSI 316L Stainless Steel Blind Flange |
| SS 316L Weld Neck Flanges Dealer | SS 316L Socket weld Flanges Exporter |
| SS 316L Long Weld Neck Flanges Stockholder | Steel 316L Threaded Flanges Distributors |
| Stainless Steel SUS 316L Reducing Flanges | SS 316L Ring Type Joint Flanges Manufacturer |
| Stainless Steel DIN 1.4435 Orifice Flange | Stainless Steel BS 316S11 Spectacle Blind Flanges |
| Stainless Steel 316L WNRF Flange | Stainless 316L SORF Flanges |
| ANSI B16.5 SS 316L RTJ Flanges | SS 316L Screwed Flanges Stockist |
| ASTM A182 SS 316L Lap Joint Flanges | ASME SA182 SS 316L BLRF Flange |
| Stainless Steel 316L Raised Face Flanges | 316L SS Nipoflange |
| A182 SS 316L Square Flanges | ASME SA182M SS 316L SWRF Flange |
| Steel 316L Tongue & Groove Flanges | SS 316L Male & Female Flanges |
| Stainless Steel 316L DIN Flanges | SS 316L ASME B16.5 Flanges |
ASTM A182 316L Pipe Flanges are known to deliver exceptional performance and are generally developed for meeting the demands. We offer a broad range of ASTM A182 316L Stainless Steel Flanges through a worldwide network of stock-keeping branches. These ASTM A182 316L Flange is use in various industries like :
A Wide Range Of the Best Quality 316L Stainless Steel Flanges, Stainless Steel Flange, ss flanges specifications, ss 316L flange price list, ss 316L flange price, stainless steel 316L flange dimensions, stainless steel 316L threaded pipe flange, stainless steel pn16 flange dimensions, stainless steel 316L flange weight calculator, Stainless Steel 316L AWWA Flanges, 1/2" stainless steel floor flange, npt threaded flange, ansi class 150 stainless steel 316L flange pressure rating, stainless steel flanges suppliers, ASME/ ANSI, EN, DIN, AFNOR, AWWA, GOST, BS, JIS, AS, MSS, SA, UNI 316L Flanges, Ring Spacers, astm a182 f316l stainless steel flange, ss 316L Weldoflange, ss 316L Flange Outlet, BS 10 Flanges, Bleed Ring, ss 316L flange class 150, steel beam flange, ss 316L flanges dimensions, ss 316L flanges manufacturer, plate flange manufacturers, plate flange dimensions in mm, plate flange design, plate flange thickness calculation, 150# Stainless Steel 316L Flanges, 300# Stainless Steel 316L Flanges, 600# Stainless Steel 316L Flanges, 1500# Stainless Steel 316L Flanges, 2500# Stainless Steel 316L Flanges Manufacturer, Supplier in India.
MIDDLE EAST Saudi Arabia |
AFRICA Nigeria NORTH AMERICA Usa |
EUROPE Russia |
ASIA India SOUTH AMERICA Argentina |
We are renowned & most acclaimed Source, Stock, Distribution, Manufacturer, Suppliers, Stockholder, Traders, Wholesaler, Dealer, Distributor, Importer & Exporter, Fabricator, Stockist of ASTM A182 316L Flanges in Stainless Steel.
For More Information About ASTM A182 F316L Stainless Steel Flange Please Call +91 22 3533 5640 or Send an Email to [email protected]
